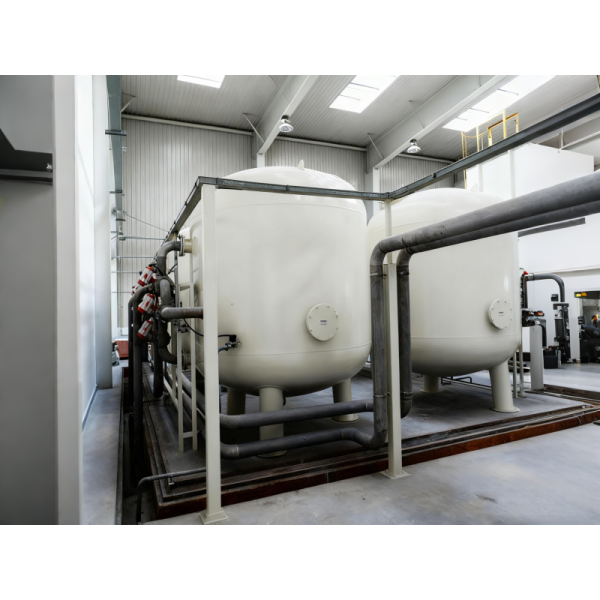

Remote Anthracite Mechanical Filtration System Skid Mounted Circulating Water Filtration

Place of Origin : China

Brand Name : SH

Certification : CE; ISO14001; ISO19001;ISO45001;EAC

MOQ : 1 set

Price : Negotiable

Packaging Details : OEM

Delivery Time : 5 work days

Payment Terms : T/T

Supply Ability : 2000 sets / year

Product Name : Mechanical Filter

Application Purpose : Circulating Water Reuse, Industrial and Cooling Water

Flow Rate : 1–200 m³/h（Customizable）

Filter Media : Quartz Sand, Anthracite, Manganese Sand, Multi-media

Contact Now

Remote Anthracite Mechanical Filtration System Skid Mounted Circulating Water Filtration
Mechanical Filtration System For Circulating Water Reuse
Product Overview
This Mechanical Filter for Circulating Water Reuse is specially designed for industrial and municipal water recycling systems. It uses a multi-layer media bed to effectively remove suspended solids, colloids, and fine impurities, improving water quality and reducing scaling or corrosion in pipelines and equipment. It features reliable operation, low energy consumption, and a fully automatic backwashing function.
Working Principle
When raw water passes through the filter vessel, impurities are trapped and retained by the layered media. Once the pressure difference reaches the preset value, the system automatically switches to backwash mode. Clean water or an air-water mixture is used to flush the filter bed, ensuring efficient and continuous operation.
Main Components
  • Filter housing (carbon steel or stainless steel)
  • Multi-layer sand and anthracite bed
  • Distributor and filter nozzles
  • Differential pressure control unit
  • Automatic valve group
  • Control cabinet (manual / automatic / PLC)
Features
  • High filtration efficiency and stable output quality
  • Fully automatic backwash operation
  • Modular and compact design
  • Customizable materials and media types
  • Long service life and low maintenance cost
  • Adaptable to different flow rates and water qualities
Applications
  • Cooling and circulating water filtration
  • Industrial wastewater pretreatment and reuse
  • Power, electronics, and metallurgical industries
  • Pretreatment for RO/UF systems
  • Municipal reclaimed water treatment
Optional Configuration
  • Differential pressure automatic backwash
  • Full stainless steel construction
  • Remote monitoring and control
  • Skid-mounted modular systems
  • Online flow and pressure sensors
